Possible to Clone Ford 6dct250 TCM Gearbox by Mini ACDP with Module 14?

Yanhua Mini ACDP Module

Written by:

Question: Can I use Mini ACDP module 14 to clone my ford 6dct250 tcm? If can, how to do it?

Answer from yanhuaacdp.com engineer:

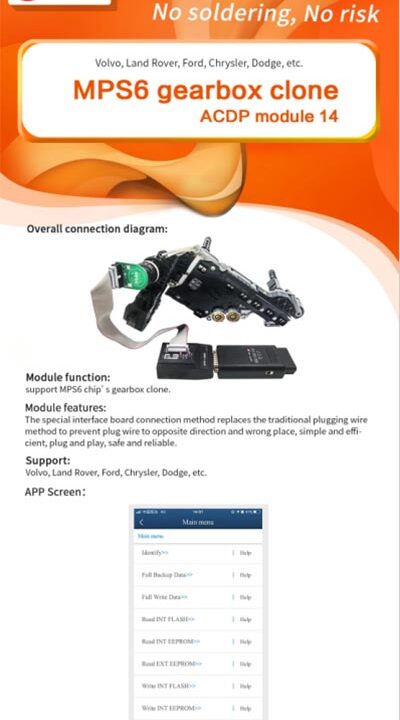

ACDP module 14 (Yanhua ACDP MPS6 Gearbox Clone Module) support all the MPS6 chip’s Gearbox clone. As long as the gearbox is MPS6, then you can clone it by ACDP.

Step-by-step guide to clone Ford MPS6 Gearbox:

Step 1: Prepare ACDP, OBP+ICP adapter, MPS6 Gearbox Clone interface board and Ford Gearbox module
Step 2: Connect the interface board correctly to the gearbox interface
Step 3: Short the CAN resistor on the OBP+ICP adapter to the “CAN-R Join”
Step 4: Connect ACDP, OBP+ICP adapter, interface board and gearbox

Step 5: Enter Mini ACDP APP

Select Jaguar/ Land Rover or Volvo-> Gearbox Clone->the corresponding car model -> MPS6

Full backup data firstly, then full write data

Reference:

Mini ACDP Module 14 Clone MPS6 Gearbox for Volvo & Land Rover

Yanhua ACDP MPS6 Gearbox Clone Module 14:
https://www.yanhuaacdp.com/wholesale/acdp-mps6-gearbox-clone-module-14.html
